5G NR Repeater
5G Band-adjustable Digital Pico Repeater (N41/N77/78/79)
Model: 51711D
Product Details

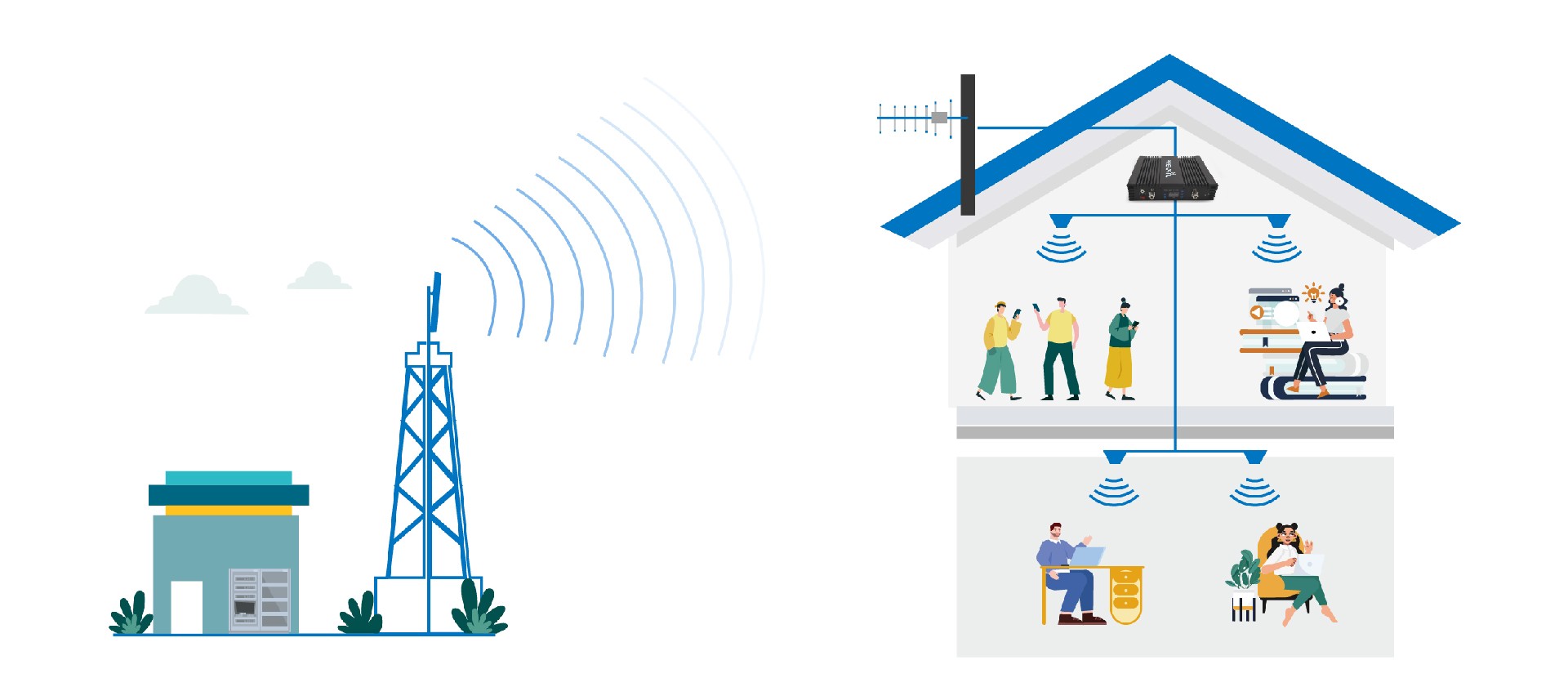

Integrated design, easy deployment
Digital filtering supports adjustable bandwidth
Support NSA+SA Mode (with 4G anchor band)
The real Speed test up to 300Mbps+(SISO)
Built-in 5G base band synchronous detection module (SDM) to ensure accurate synchronization with donor base station
Configure 5G TDD uplink and downlink timeslot format flexibly through software
Specification
SYSTEM | |||
Frequency Range | P/N: 51711D.41 | UL: 2496 - 2690 MHz (adjustable) | DL: 2496 - 2690 MHz (adjustable) |
P/N: 51711D.77 | UL: 3300 - 4200 MHz (adjustable) | DL: 3300 - 4200 MHz (adjustable) | |
P/N: 51711D.78 | UL: 3300 - 3800 MHz (adjustable) | DL: 3300 - 3800 MHz (adjustable) | |
P/N: 51711D.79 | UL: 4400 - 5000 MHz (adjustable) | DL: 4400 - 5000 MHz (adjustable) | |
Number of Sub-bands | 1 | ||
Bandwidth | 5/10/15/20/25/30/35/40/45/50/55/60/65/70/75/80/85/90/95/100MHz adjustable Step/5MHz | ||
Max. Gain | ≧ 70 ±2dB | ||
Manual Gain Control | 30 dB in step of 1 dB | ||
Automatic Gain Control | ≧ 20 dB | ||
Gain Flatness | ≦ 3 dB (peak-to-peak) | ||
Max. Input Power Without Damage | 0 dBm | ||
Output Power | Uplink | ≧ 17±1 dBm | |
Downlink | ≧ 17±1 dBm | ||
Operating Band Unwanted Emissions | Comply with 3GPP | ||
Spurious Emission | 9kHz~1GHz | ≦ -36dBm | |
1GHz~12.75GHz | ≦ -30dBm | ||
ACPR | ±20MHz | ≦ -45dBc | |
±40MHz | ≦ -50dBc | ||
EVM | NR: ≦3.5% (at Max. Output Power) | ||
Frequency Stability | ≦ ±0.01 ppm | ||
Noise Figure | ≦ 6 dB (@Max. Gain) | ||
VSWR | ≦ 1.8 | ||
Group Delay | ≦ 3.5μs | ||
RF Connector | SMA-Female | ||
Impedance | 50 Ω | ||
Power Supply | Input: AC 100~240 V; Output: DC 12V/ 3 A | ||
Power Consumption | ≦ 32 W | ||
Dimensions | 200*156*50 mm | ||
Weight | ≦ 2 kg | ||
IP Rating | IP40 | ||
Operating Temperature | -10 ℃ to 55 ℃ | ||
LED Indicator | RSSI | Green LED *3 to Indicate Receive Power Level | |
ALRM | Red LED *1 to Indicate the Booster is Alarming | ||
PWR/SYNC | Green LED *1 to Indicate the Booster is Operating | ||
Control & Monitoring | Local | Via Micro USB | |
