IMSI Catcher
Vehicle-mounted Active Interception System

Vehicle-mounted Active Interception System

Model: 546411D

The Vehicle-mounted Active Interception System is a state-of-the-art solution tailored for voice & SMS interception and location tracking of target mobile phones operating under 5G/LTE/WCDMA/GSM networks.

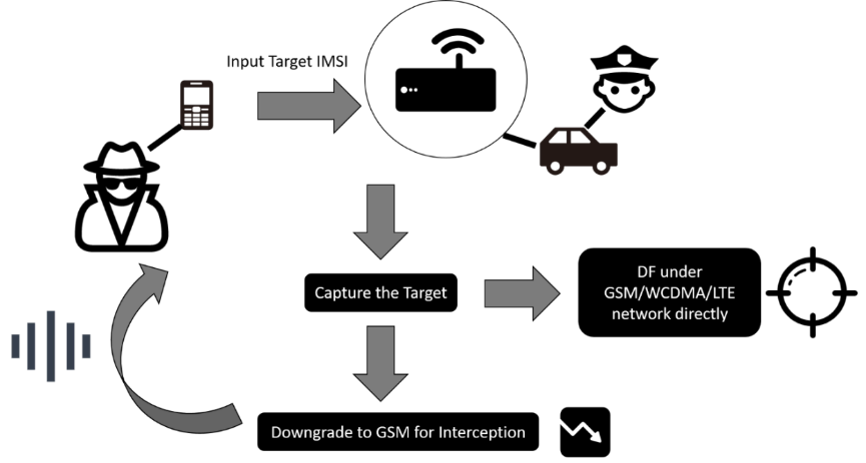

The system, designed in a vehicle-mounted configuration with an active operational mode, facilitates the successful registration and capture of target mobile phones. Once registered, it acts as a Man-in-the-Middle, enabling the interception of communication content, calls, and SMS messages from specified targets. Moreover, precise target localization can be achieved through the utilization of individual positioning devices.


Product Details



  • Multi-Network Compatibility: The system operates seamlessly across various network generations, including 5G, LTE, WCDMA, and GSM. This ensures broad applicability regardless of the target's network connectivity.

  • Encryption Decryption: The VAIS can handle communication encrypted with A5/0, A5/1, A5/2, and A5/3 algorithms, commonly used in older networks. This allows for comprehensive interception even with basic encryption measures.

  • Real-Time Verification and KC Evaluation: The system verifies the target's identity and evaluates the encryption key in real-time. This ensures accurate targeting and facilitates efficient communication decryption.

  • Comprehensive Recording: The VAIS captures and records voice conversations, SMS messages, and call-related data associated with the selected target. This provides a detailed record of the target's communication activity.

  • Precise Location Tracking: The system offers rapid location detection for mobile phones within the operational area. This provides valuable situational awareness for monitoring activities.


Specification

P/N: 546411D


Supported Network

5G NR/LTE-TDD/LTE-FDD/WCDMA/GSM

Supported Frequency Band

5G

n41(2600)/n78(3500)

LTE

B1(2100)/   B3(1800)/B28(700)/B40(2300)

WCDMA

B5(850)/B8(900)/B1(2100)

GSM

B3(900)/B8(1800)

Support Carrier Number

5G

2

LTE

4

WCDMA

3

GSM

2

Number of Concurrent Interceptions

≤ 4(Voice & SMS   interception)

Receiving Sensitivity

5G

-110dbm

LTE

-100dbm

WCDMA

-118dbm

GSM

-110dbm

Transmitting Power

5G NR

Single carrier 0~40w   (adjustable)

LTE

Single carrier 0~40w   (adjustable)

WCDMA

Single carrier 0~40w   (adjustable)

GSM

Single carrier 0~40w (adjustable)

Peak IMSI Catching Rate

5G

≥1,000 /carrier/per minute

LTE

≥1,000 /carrier/per minute

WCDMA

≥800 /carrier/per minute

GSM

≥800 /carrier/per minute

Key Cracking Performance

KC cracking number: >200(under the typical   signal environment)

Accuracy of Positioning

<1m (Through the Individual Decoder)

Power Supply

AC 220V±10%,50Hz±5%

Power Consumption

≤1500W

Dimensions (L*W*H)

500mm*500mm*530mm (shock-absorbing box with   standard model)

550mm*550m*400mm   (standard model)

Weight

≤65kg (host weight of standard model)

≤90kg (total weight including stand and   shock-absorbing box)

Operating Temperature

-10 ~ +50 °C

Humidity

≤95%

Mounting

Vehicle-mounted or fixed-installation


It has come to our attention that the device is intended for use only by special departments and companies officially authorized by law. Other companies or individuals are strictly forbidden from installing and using the device. It is imperative that the device(s) are not utilized to conceal or assist criminal and/or terrorist activities. Thank you for your attention to this matter.
